BrainGate

Brain-computer interface system

BrainGate

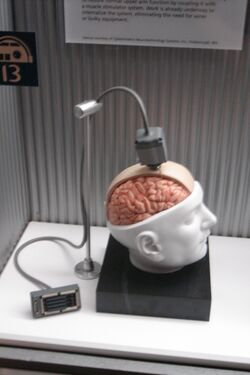

Diagram of the BrainGate system

BrainGate is a brain-computer interface (BCI) system that is designed to help individuals with severe motor impairments. It allows users to control external devices using their neural activity. The system is primarily aimed at individuals who have lost the ability to move due to conditions such as amyotrophic lateral sclerosis (ALS), spinal cord injury, or stroke.

Overview

The BrainGate system works by implanting a small sensor in the motor cortex of the brain, which is the area responsible for voluntary movement. This sensor detects neural signals associated with the intention to move and transmits them to an external device. The signals are then decoded by a computer, which translates them into commands that can control a computer cursor, robotic arm, or other assistive devices.

Components

The BrainGate system consists of several key components:

• Implantable Sensor: A tiny array of electrodes is implanted in the motor cortex. This sensor records the electrical activity of neurons.
• Signal Processing Unit: The neural signals are transmitted to a signal processing unit that amplifies and digitizes them.
• Decoder: A computer algorithm decodes the neural signals into actionable commands.
• External Device: The decoded signals are used to control an external device, such as a computer cursor or robotic limb.

Functionality

The primary function of BrainGate is to restore communication and mobility to individuals with severe motor impairments. By translating neural activity into digital commands, users can interact with their environment in ways that were previously impossible. For example, a person with quadriplegia can use BrainGate to operate a computer, communicate via email, or control a wheelchair.

Clinical Trials

BrainGate has undergone several clinical trials to assess its safety and efficacy. These trials have demonstrated that users can achieve significant control over external devices, with some participants able to perform complex tasks such as typing or controlling a robotic arm. The trials have also provided valuable insights into the long-term viability of the system and its potential for widespread clinical use.

Future Developments

Research and development of the BrainGate system continue to advance. Future improvements may include wireless transmission of neural signals, increased electrode density for more precise control, and integration with other assistive technologies. The ultimate goal is to create a seamless interface that can be used by individuals with a wide range of disabilities.
